Stacking AGV Forklift Panda Third Generation

Stacking AGV Forklift Panda Third Generation
  • Stacking AGV Forklift Panda Third Generation
  • Brand:EFORK
  • Product Model:EDAJⅡ
Product Description:
EFORK intelligent stacking AGV forklift (Panda 3rd generation) can customize the laser slam navigation system. The whole machine is small and thin, and the extremely small turning radius can better meet the customer's work scene and maximize the storage capacity. It is convenient to access the third-party dispatching system.
1.Stacking type AGV with support legs.
2.The turning radius is narrow.
3.Suitable for one side pallet.
4.Can customize the national standard European standard and non standard model.

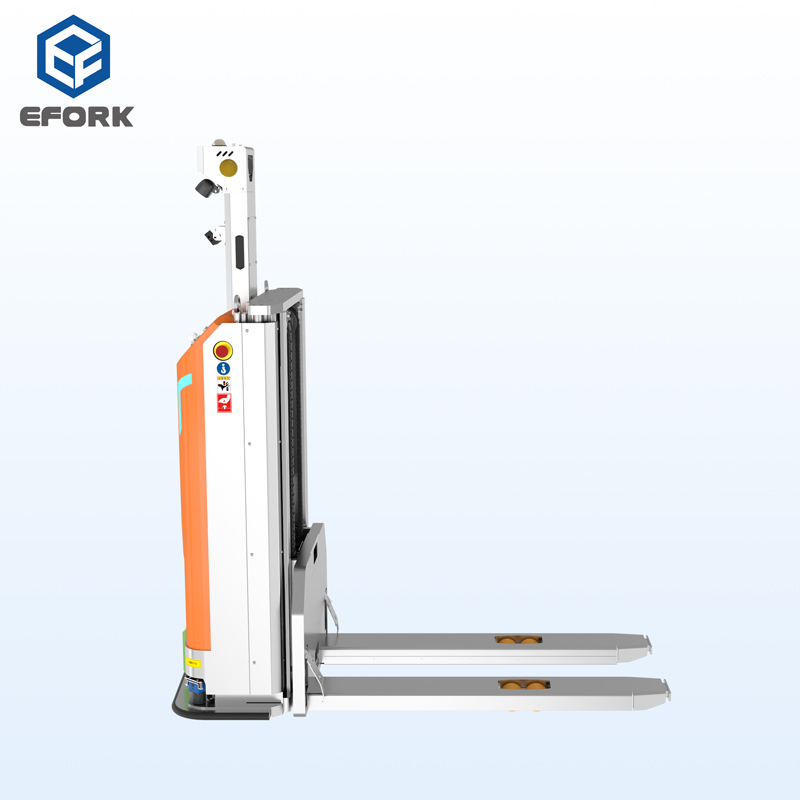

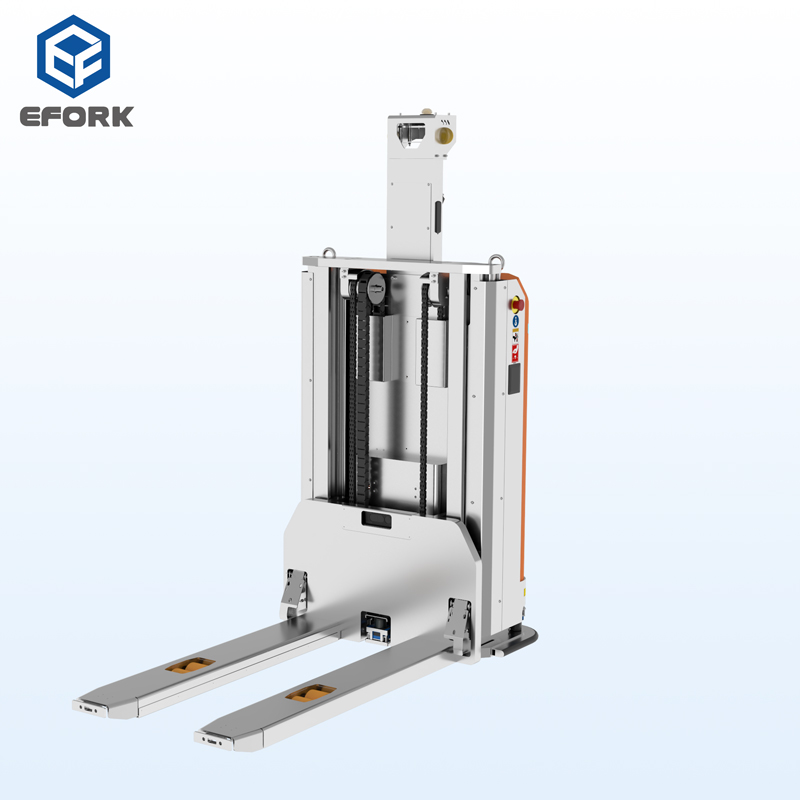

Product Picture:

Product Data:
Mode EDA20JⅡ-16 EDA20JⅡ-30 CDD30J-16 CDD20J-16
Name Stacking AGV Forklift Stacking AGV Forklift Stacking AGV Forklift Stacking AGV Forklift
Navigation Mode Fusion positioning +GPS navigation Fusion positioning +GPS navigation Fusion positioning +GPS navigation Fusion positioning +GPS navigation
Communication Mode wifi/5G wifi/5G wifi/5G wifi/5G
Rated Load Capacity 2000kg 2000kg 3000kg 2000kg
Lifting Height 1600mm 3000mm 1600mm 1600mm
Orientation Accuracy ±10mm ±10mm ±10mm ±10mm
Minimum Ground Clearance 30mm 30mm 35mm 30mm
Charging Method Automatic + manual Automatic + manual Automatic + manual Automatic + manual
Driving Direction Forward, back, and turn Forward, back, and turn Forward, back, and turn Forward, back, and turn
Battery Info 24V/135Ah 24V/135Ah 24V/200Ah 24V/160Ah
Safety Lase Obstacle Avoidance, Remote Emergency Stop, Mechanical collision avoidance,Fork collision avoidance Lase Obstacle Avoidance, Remote Emergency Stop, Mechanical collision avoidance,Fork collision avoidance Lase Obstacle Avoidance, Remote Emergency Stop, Mechanical collision avoidance,Fork collision avoidance Lase Obstacle Avoidance, Remote Emergency Stop, Mechanical collision avoidance,Fork collision avoidance
Alarm Mode Light Alarm, Voice Alarm Light Alarm, Voice Alarm Light Alarm, Voice Alarm Light Alarm, Voice Alarm
Driving Method Steering Wheel Drive Steering Wheel Drive Steering Wheel Drive Steering Wheel Drive
Load Center 600mm 600mm 600mm 600mm
Stacking channel (Pallet 1000x1200)(1200 Span Fork Placement) 1825mm 1852mm 2730mm 2515mm
Move Speed 1.5m/s 1.5m/s 1.5m/s 1.5m/s
MinimumTurning Radius 1130mm 1180mm 2095mm 1885mm
Fork Size 61/190/1150mm 61/190/1150mm 61/190/1150mm 61/190/1150mm
Fork Outer Width 680mm 680mm 780mm 680mm
Overall Size (length / width) 1618/960mm 1618/960mm 2447/1260mm 2199/1073mm
Self Weight 750kg 800kg 1200kg 900kg
Vehicle height 2195mm 2420mm 2280mm 2240mm
Maximum lift height (according to the possible height identification) 3000mm
Vehicle Projection Area 1.52㎡ 1.54㎡ 3.08㎡ 2.06㎡
Note: The width data of the stacking passage do not include safety distance. The above parameters are for reference only. Understanding is appreciated if technical changes are not notified.
